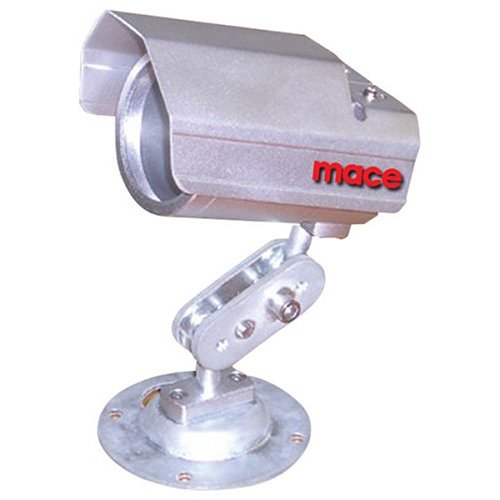

This camera utilizes a 0.33-inch color Sony CCD (charge-coupled
device) image sensor, with an extremely high resolution of 470
horizontal TVL (TV lines). The CAM53CIR utilizes a 4.3-millimeter fixed
lens, operates on the NTSC signal format, and achieves a S/N
(signal-to-noise) ratio of 48 dB or better. This unit is extremely good
in low-light and no-light conditions, with a minimum illumination of one
Lux in standard color mode, and the ability to receive a usable picture
under no-light (0 Lux) conditions up to 50-feet away with the IR
illuminator on. The IP55 rating means this unit has a protection level
of five against solid-body ingress, and a protection level of five
against the ingress of water. Five is the second-highest protection
level against solid bodies, meaning the CAM53CIR is protected against
dust ingress to the point of disallowing harmful deposits. Protection
against water ingress goes up to level eight, and a five means this unit
will protect your camera against the effects of low-pressure jets of
water from any direction. The CAM53CIR comes complete with features such
as automatic white balance, and a built-in automatic electronic shutter
with speeds ranging from 1/50 to 1/100,000 of a second.

Technical Features:

• S/N ratio: better than 48 dB
• Sensitivity: 1 Lux
  standard, 0 Lux up to 50-feet with IR
• Weatherproof rating: IP55

• Horizontal resolution: 470 TVL
• Operating temperatures: -20 and 50
  degrees Celsius
• Dimensions: 2.1 inches in diameter and 3 inches in depth


About Surveillance Camera Technical Features
Lux rating is the
measurement used to indicate how sensitive a camera is to light, and
stands for the level of light reflected off a piece of paper by a candle
from one meter away. Thus a sensitivity of three Lux would mean a camera
could generate an acceptable picture of a piece-of-paper-sized object
that was illuminated by the equivalent of three candles from one meter
away. The lower the Lux level, the better the camera's ability to work
in low-light conditions. The camera's resolution should be greater than
or equal to the resolution supported by the system's recorder or monitor.
The S/N, or signal to noise ratio, is an important measure of a
camera's quality. A poor camera, low-light conditions or poor wiring
causes "noise" which consumes processing power and disk space. A camera
with a wide dynamic range is ideal, especially for recording areas in
which both indoor and outdoor light are present. CCD (charge-coupled
device) sensors provide high-quality images that are less susceptible to
noise. CMOS (complimentary metal-oxide semiconductor) sensors offer less
image quality, but are usually more cost-effective and energy efficient.


Details

Batteries Included: 0
Binding: Electronics
Feature: 0.33-inch color Sony CCD image sensor
Is Autographed: False
Is Memorabilia: False
Height: 300 hundredths-inches
Length: 800 hundredths-inches
Weight: 136 hundredths-pounds
Width: 400 hundredths-inches
Label: Mace Group
Manufacturer: Mace Group
Model: CAM53CIR
MPN: CAM53CIR
Number of Items: 1
Package Height: 430 hundredths-inches
Package Length: 1830 hundredths-inches
Package Wight: 200 hundredths-pounds
Package Width: 1570 hundredths-inches
Platform: No Operating System
Publisher: Mace Group
Release Date: 2006-06-22
Studio: Mace Group
UPC: 022188900064
Warranty: 1 year warranty
