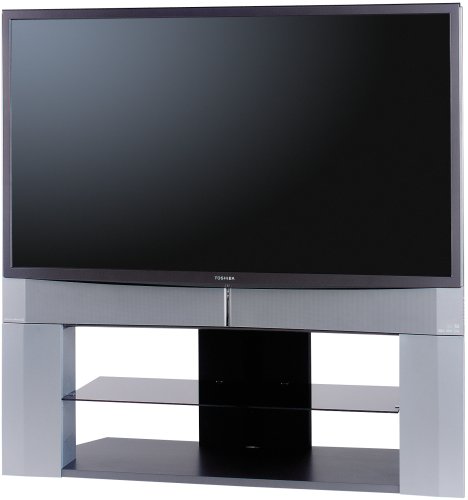

Get the sharpest and clearest images possible from HD and standard TV
and your favorite DVD movies with the 62-inch Toshiba 62HM196 DLP
rear-projection television, which offers both 1080p and 720p progressive
resolution. As 720p is rated as high-definition, Toshiba has dubbed this
TheaterWide TV XHD--2X Resolution, as its 1080p rating has twice the
pixel count of 720. This set is loaded with the latest in video and
audio processing technology as well as loaded with a wide variety of
connectivity options, including an Ethernet port for playing digital
audio and images over your home network. The set's built-in ATSC (DTV)
tuner pulls HD signals (480p/720p/1080i) right from the airwaves, and
its QAM tuner is fully compatible with unscrambled HDTV cable reception.
The CableCARD port means the set will also receive digital cable
television systems services directly from a compatible cable operator
without requiring a bulky, external cable box. A standard analog NTSC
tuner receives standard-definition (SD) programming. DLP (which stands for Digital Light Processing) uses an optical
semiconductor to recreate source material with a fidelity analog
systems can't match. While other technologies lose a certain amount of
light in transit, the microscopic mirrors in a DLP projection system
bring more light from lamp to screen. It also features better color
uniformity over time--no burn-in, screen aging or color-shifting
possible. It's the leading display technology for products like small
portable conference room projectors and professional venue entertainment
systems.
This DLP set is powered by Toshiba's TALEN X digital light engine,
which utilizes Texas Instruments' xHD4 chip, advanced optics, and
Toshiba's DEEP Picture and Xtreme BLAC technologies to provide high
resolution with improved brightness and contrast. This model also
includes the new PixelPure AT Digital Video Processing, utilizing the
new Adaptive Technology to create further improved picture quality. It
also features the Radiance 150 Hi-Bright lamp for noticeably brighter
images and a TheaterFine DFP Screen with anti-glare coating for
increased detail and noticeably deeper blacks.
The 62HM196 set features Toshiba's CableClear DNR+ technology, which
optimizes poor NTSC signals from antenna or cable sources to eliminate
video noise ("snow") for a clean crisp image. It utilizes the digital
3D/YC comb filter to compare frames and determine the existence and
extent of video noise. It then applies the needed amount of digital
video noise reduction, and the appropriate sharpness adjustment to keep
the picture clear. This feature now works on RF, composite and S-Video
inputs, and can be selected by input.
The aforementioned 3D Y/C comb filter separates brightness and color
signals better in 3D domain to eliminate cross-color, cross-luminance
and dot-crawl distortion. It performs field-by-field comparisons of the
television image to accurately separate the color from the
black-and-white information and remove both horizontally and vertically
hanging dots, as well as dot crawl, resulting in a razor sharp image.
The Cinema Mode feature performs 3:2 pulldown detection and reversal,
too--a handy feature for watching progressive-scan movie programs in
their native 24-frame format. To adapt 24 frames-per-second movies to 30
fps video, frames in the original movie must be duplicated; 3:2 pulldown
digitally corrects this duplication by removing the redundant
information to display a frame-accurate picture. This set also offers
five TheaterWide modes that expand letterboxed images--which is
particularly useful when watching narrow letterboxed Panavision or
CinemaScope films.
The Movie Mode feature changes the basic picture setup conditions to
create a more theater-like picture, while the Sports Mode feature
automatically adjusts appropriate picture levels to produce enhanced
color, detail and brightness. Other convenience features include TV
Guide onscreen interactive program guide, color temperature control,
auto aspect ratio detection, closed captioning on mute, sleep timer,
tri-lingual on-screen display, video input labeling, channel labeling,
channel/video lock, and V-Chip parental controls.
This set has two stereo speakers that provide 15 watts of power per
channel (for 30 watts of total power) and SRS WOW virtual surround sound.
The StableSound feature maintains television volume within a preset
range regardless of the source signal. This helps to eliminate the
annoyance of normal program volume being followed immediately by
extremely loud commercial messages or drastic volume fluctuations while
changing channels.
It's easy to connect to brilliant imagery with the component and HDMI
connections--the latter offering pure digital audio/video performance
with no degradation of signal from just one convenient cable. This set
also includes the new THINC (Toshiba Home Interactive Network
Connection) home entertainment networking capability (Ethernet port),
which allows you to connect the TV to your PC and play MP3 audio files
and JPEG pictures using only the TV remote. It features the following
video and audio connections:
- Composite A/V: 2 (1 front) in, 1 out
- S-Video: 2 (1 front) in
- Component Video: 2 in
- HDMI: 2 in
- RF: 2 in
- Ethernet: 1 in
- Digital audio output: 1 optical
Tech Talk
A DLP television (Digital Light Projection, also referred to
as microdisplays) typically offers a large screen with a cabinet that's
deeper than standard LCD and plasma screens, but far more compact than
old-school cathode-ray television (CRTs). This rear-projection TV
projects red, green, and blue light that's filtered through a
pixel-filled microchip color wheel and directed onto a digital
micromirror device (DMD), a chip with millions of hinged, microscopic
mirrors attached, which switches on and off up to 5,000 times a second.
The reflected light is directed through a lens and onto a screen,
creating an image. Unlike rear-projection CRT sets, all microdisplays
can get quite bright without losing detail, so they're perfectly
watchable in brightly lit rooms.
HDMI is a lossless, uncompressed, all-digital audio/video interface to
link any audio/video source (such as a set-top box, DVD player, or AV
receiver) with your TV--all over a single cable. HDMI supports standard,
enhanced or high definition video, plus multi-channel digital audio on a
single cable. It supports all ATSC formats--standard (SDTV), enhanced
(EDTV), and high (HDTV).
Component video (also called Y/Pb/Pr) features a three-jack video input,
which provides separate connections for luminance (Y), blue color
difference (PB) and red color difference (PR). This results in increased
bandwidth for color information, resulting in a more accurate picture
with clearer color reproduction and less bleeding than you would get
with S-Video or composite (RCA yellow video plug) connections. You will
need a separate RCA left/right audio cable for sound.
SRS WOW virtual surround sound processing technology consists of three
separate sound expanding systems, which work together to extract
"buried" highs and lows. The three systems are, SRS 3D, TruBass, and
FOCUS. SRS 3D creates a three dimensional sound field from just two
speakers, thus giving the listener the feeling of hearing a multi
speaker surround sound system. TruBass produces a powerful, yet low,
frequency sound by utilizing a process called psychoacoustics. From only
two small speakers, TruBass will give the effect of an expensive sub
bass woofer that will leave the listener amazed by the quality of the
sound. FOCUS was added to direct the energy from the speakers of the
television set in a vertical direction up towards the listenerÕs ears.
The addition of FOCUS means that there is virtually no loss of sound
from the speakerÕs position on the bottom panel near the floor, which
achieves a clear, undistorted range of audio.
What's in the Box
DLP TV, remote control (with batteries), printed
operating instructions
